Understanding Snap Fit Joints: An Essential Guide for Product Design
Introduction
March 24, 2023, marks a significant day for discussing the intricate world of snap fit joints. These versatile mechanical joints are ubiquitous in everyday products, from Tupperware lids to pen caps. Snap fit joints are essential for creating durable, reusable, and aesthetically pleasing connections between components. This article delves deep into the mechanics, types, advantages, limitations, and best practices for designing snap fit joints.
What is Snap Fitting?
Snap fitting is a mechanical assembly technique where flexible components are joined together. The process involves pressing one component into another, causing the flexible features to deform temporarily. Once in place, the components "snap" into their locking positions, returning to their original shape without permanent deformation. Plastics are commonly used for snap fit components due to their flexibility and durability.
Snap Fit Joints
Snap fit joints are mechanical connections that utilize snap fit technology. They are designed to interlock without requiring additional fasteners. One of the key advantages of snap fit joints is their reusability—users can repeatedly assemble and disassemble them without compromising their functionality. This feature sets them apart from traditional fasteners like screws, which often degrade after repeated use.
Types of Snap Fit Joints
Various types of snap fit joints exist, each suited to specific applications, benefits, and limitations. Here are the primary types:

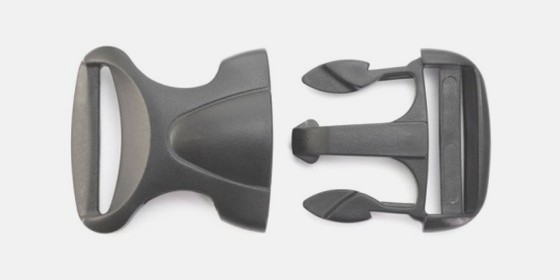

1. Cantilever Snap Fit
Cantilever snap fits are the most prevalent type of snap fit joints. They consist of a cantilever arm with an interlocking feature at its free end. As one component is inserted into the other, the arm deforms, eventually snapping into place. While durable, these joints can suffer from permanent deformation if overextended.

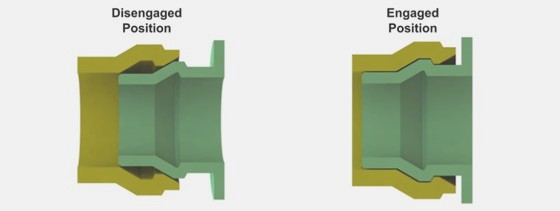

2. Annular Snap Fit
Annular snap fit joints involve a circular hoop that expands when pushed onto a rigid groove. This expansion generates enough friction to secure the hoop in place. These joints are ideal for high-stress applications due to their uniform stress distribution but can loosen over time with excessive use.

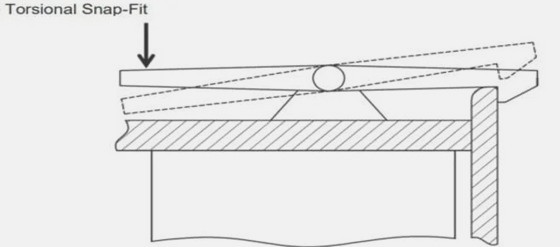

3. Torsion Snap Fit
Torsional snap fits are similar to cantilever snap fits but employ a torsional force to maintain the joint's position. Assembly and disassembly involve overcoming the spring force to engage or disengage the interlocking clip. These joints are simple and durable, making them a popular choice.

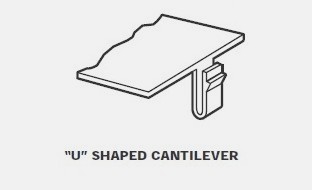

4. U-Shaped Snap Fit
U-shaped snap joints feature a U-shaped interlocking element. Similar to cantilever joints, these designs can be more prone to hyper-extension and are challenging to manufacture due to their complex geometry.
Benefits of Snap Fit Joints
Snap fit joints offer numerous advantages that make them indispensable in product design:
Easy Assembly/Disassembly
Snap fit joints are incredibly user-friendly, allowing for quick and effortless assembly and disassembly without specialized tools.
No Extra Hardware
These joints eliminate the need for additional hardware such as screws, nuts, and washers, simplifying the overall design and reducing costs.
Reliable and Long Service Life
When used correctly, snap fit joints can last for years, providing reliable performance throughout their lifespan.
Aesthetics
Snap fit joints are typically invisible from the exterior, maintaining the aesthetic appeal of products without visible fasteners.
Limitations for Using Snap Fit Joints
While snap fit joints have many benefits, they also come with certain limitations:
Complex Production Process
Manufacturing snap fit joints requires careful consideration of interlocking features and stress concentration regions, adding complexity and cost to the production process.
Easy to Break
Flexible components are inherently more susceptible to breaking under slight overloading, necessitating careful design and material selection.
Weaker Than Permanent Joints
Snap fit joints are non-permanent and may not match the strength of permanent fasteners like screws and bolts, though this is not always a concern given their specific applications.
Common Issues with Snap Fit Design
Snap fit joints can face several challenges that affect their longevity and performance:
Stress Concentration
Stress concentrations occur in areas with sharp corners or turns, leading to potential failure if the material's strength limits are exceeded.
Creep
Long-term exposure to stress can cause materials to weaken over time, compromising the joint's structural integrity.
Fatigue
Repetitive loading can lead to fatigue failure, especially in joints subjected to frequent assembly and disassembly.
Environmental Conditions
High temperatures, chemical exposure, and humidity can negatively impact the performance of snap fit joints.
Best Tips for Designing Durable Snap Fit Joints
Designing durable snap fit joints requires careful attention to several factors:
Appropriate Tolerance
Balancing the fit between interlocking components is crucial. Too tight or too loose fits can lead to high stress concentrations or insufficient engagement force.
Base Fillet at Cantilever Arm
Filleting the base of cantilever arms reduces stress concentrations, enhancing the joint's resistance to failure.
Wide Clip
Wider clips distribute loads more evenly, increasing the joint's strength and durability.
Stops and Lugs
Designing stops and lugs prevents over-insertion, reduces stress concentrations, and helps align components.
Tapered Design
Adding a slight taper to the snap fit design reduces stress concentrations and material usage.
Applications of Snap Joints
Snap fit joints find applications in various industries due to their convenience and efficiency:
Snap Fasteners
Snap fasteners are ideal for creating strong, hidden joints in durable parts.
Pen Caps
Pen caps use annular snap fits, allowing users to easily attach and detach them.
Bag Latches
Trekking bags often use cantilever snap fit joints to securely hold their contents.
Tupperware Lids
Tupperware lids frequently incorporate snap fits, ensuring long-lasting and air-tight seals.
Conclusion
Snap fit joints play a vital role in product design, offering efficient and convenient methods for creating durable mechanical connections. Their ubiquity in everyday products underscores their importance. Whether you're designing consumer goods or industrial equipment, understanding and implementing snap fit joints can significantly enhance your product's performance and aesthetics.
WayKen, a rapid manufacturing company, provides metal and plastic snap fits for various projects. From prototyping to production, WayKen offers comprehensive services to bring your ideas to life. Contact them for expert consultation and quotations.
FAQs
What are snap fit joints?
Snap fit joints are mechanical connections that use interlocking features to hold two parts together without additional fasteners or adhesives.
What are the common processes used to produce snap fit joints?
Injection molding is the most common process for manufacturing snap fit joints. CNC machining and 3D printing are also occasionally used.
What materials can be used for snap fit joints?
Plastics such as ABS, PETG, Nylon, and PLA are commonly used due to their flexibility and ease of molding.
What are the correct tolerances for snap fit design?
Tolerances should be balanced to avoid high stress concentrations or insufficient engagement force. A typical gap width range is 0.2-0.5 mm, depending on the joint type and material used.
By understanding the intricacies of snap fit joints, designers can create more robust and aesthetically pleasing products, enhancing both functionality and user experience.
